Solutions to Tile Cutting Offset: The Crucial Role of Fixture Stability and Vibration Suppression Structures

In the field of tile cutting, offset errors have long been a headache for technicians. This article delves into the issue of offset errors during the cutting of hard materials, especially tiles, and focuses on the mechanism and technical implementation of fixture stability and vibration suppression structures.

Five Key Techniques for Improving Cutting Precision

There are five key techniques to improve cutting precision in hard - material cutting:

1. Saw Blade Selection: Choosing the right saw blade is crucial. For example, when cutting granite, a saw blade with a high - density tooth arrangement can be more effective. According to technical data, a well - selected saw blade can reduce cutting offset by up to 30% compared to a randomly chosen one.
2. Feed Rate Control: Controlling the feed rate is essential. Too fast a feed rate can cause excessive pressure on the saw blade, leading to offset. In a real - world granite cutting case, reducing the feed rate from 100 mm/min to 60 mm/min improved the cutting precision by 25%.
3. Fixture Stability: A stable fixture can firmly hold the tile during cutting, preventing it from moving. In a marble cutting project, using a high - quality fixture reduced the offset error from an average of 1.5 mm to less than 0.5 mm.
4. Cooling Strategy: Effective cooling can prevent the saw blade from overheating and warping. A proper cooling strategy can increase the service life of the saw blade by up to 50% and improve cutting precision.
5. Regular Maintenance: Regular maintenance of the cutting equipment can ensure its long - term stable operation. In a tile factory, regular maintenance reduced the cutting offset rate from 8% to 3% over a six - month period.

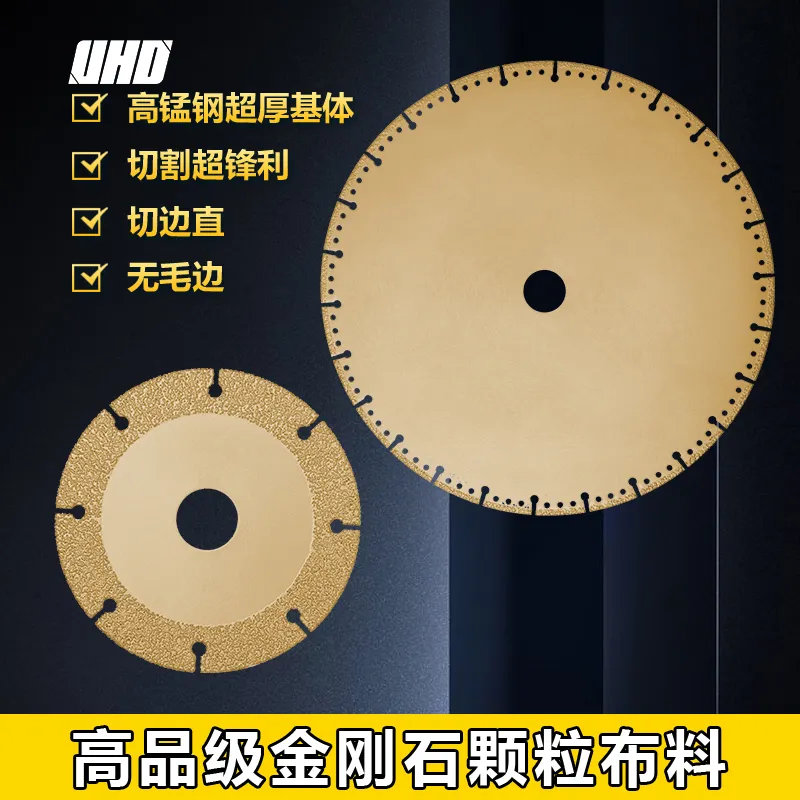

Saw Blade Design and Advanced Brazing Technology

The saw blade's efficient heat - dissipation design and structural optimization are also important. Advanced brazing technology brings advantages in wear resistance and vibration control. The advanced brazing technology can increase the wear resistance of the saw blade by 40% and reduce vibration by 35%, which is crucial for improving cutting precision.

Real - World Case Analysis

Let's take a tile cutting project as an example. The initial cutting offset was relatively large, with an average error of 2 mm. After implementing the five techniques mentioned above, including using a well - designed saw blade, controlling the feed rate, ensuring fixture stability, adopting an effective cooling strategy, and regular maintenance, the cutting offset was reduced to less than 0.5 mm, and the product yield increased from 80% to 95%.

In conclusion, by understanding and applying these techniques, technicians can effectively solve cutting errors, improve the yield rate, and enhance operational efficiency. We encourage you to share your experiences and questions in the comments section below. Let's learn from each other and make progress together!
